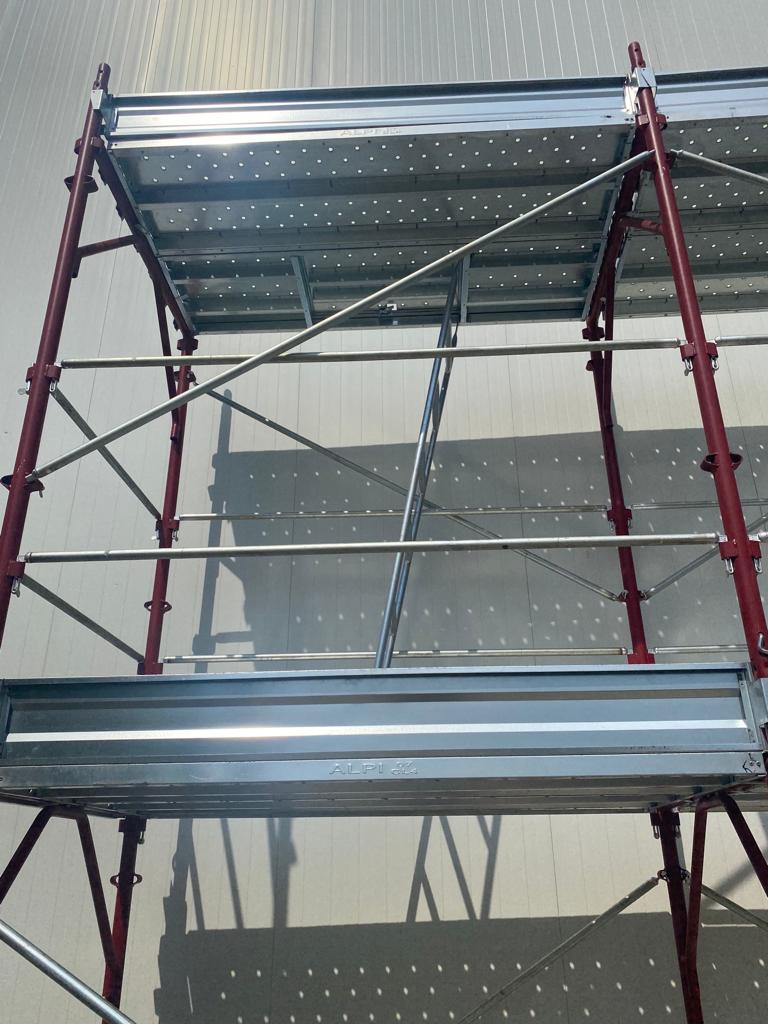

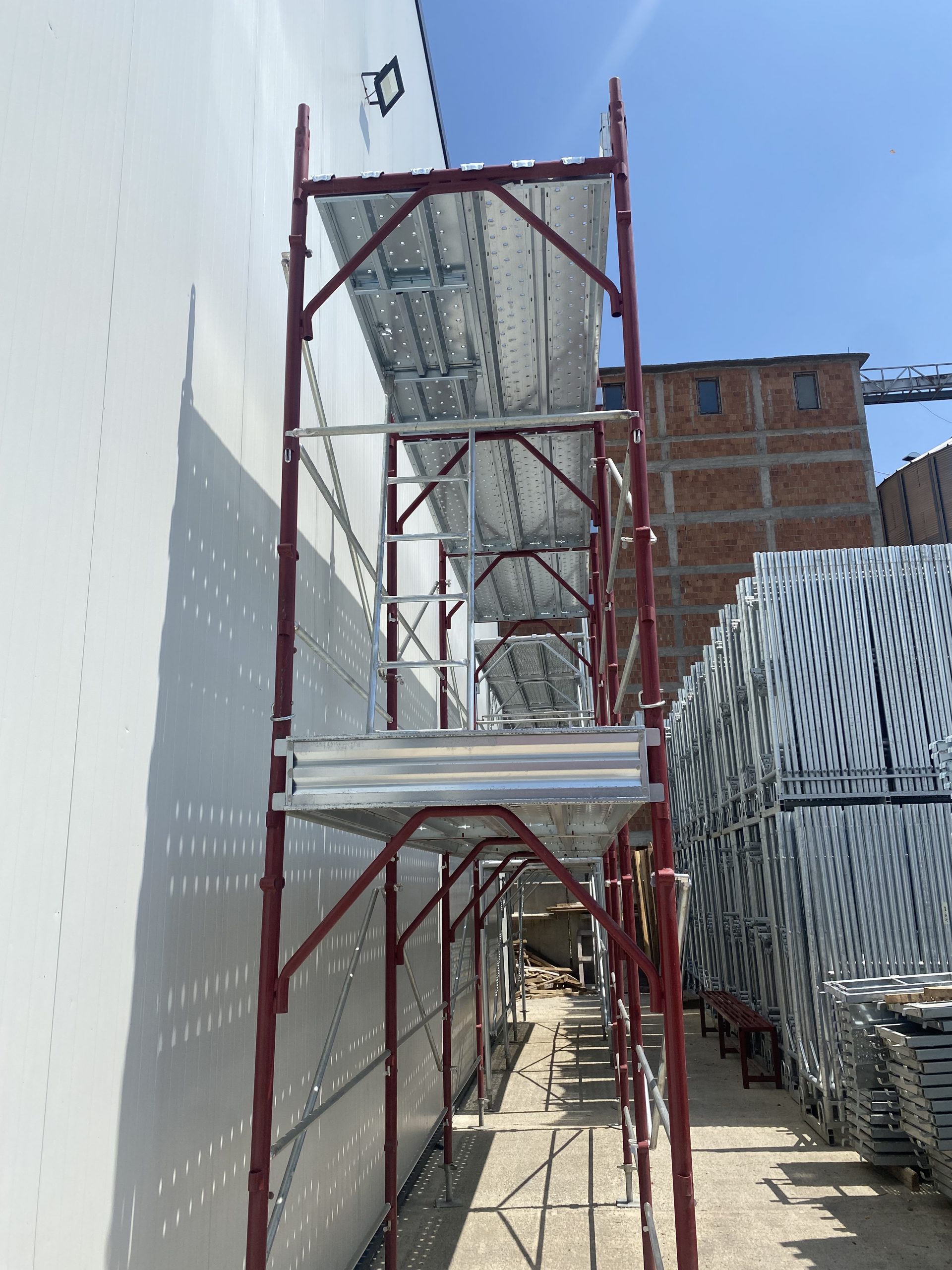

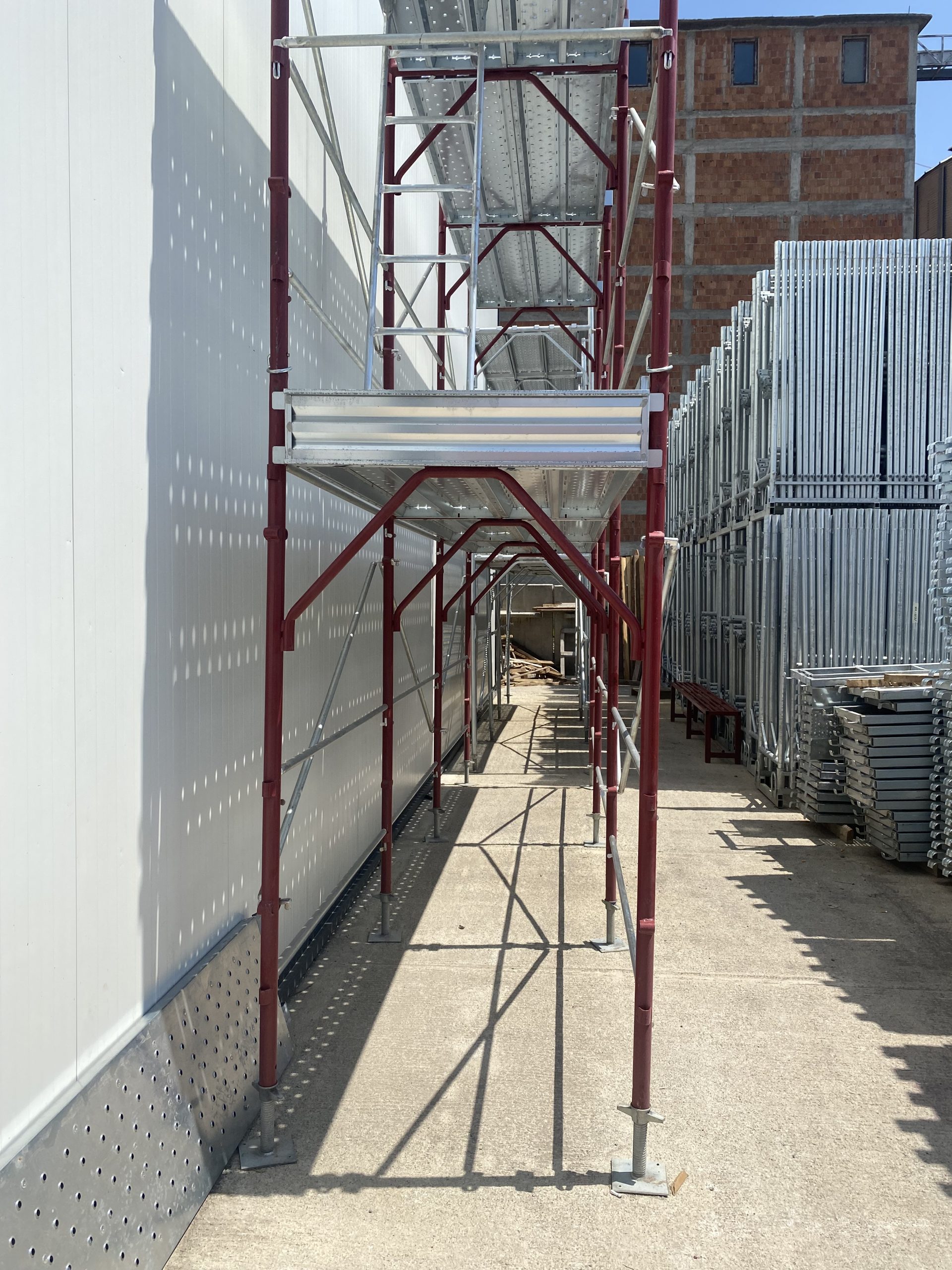

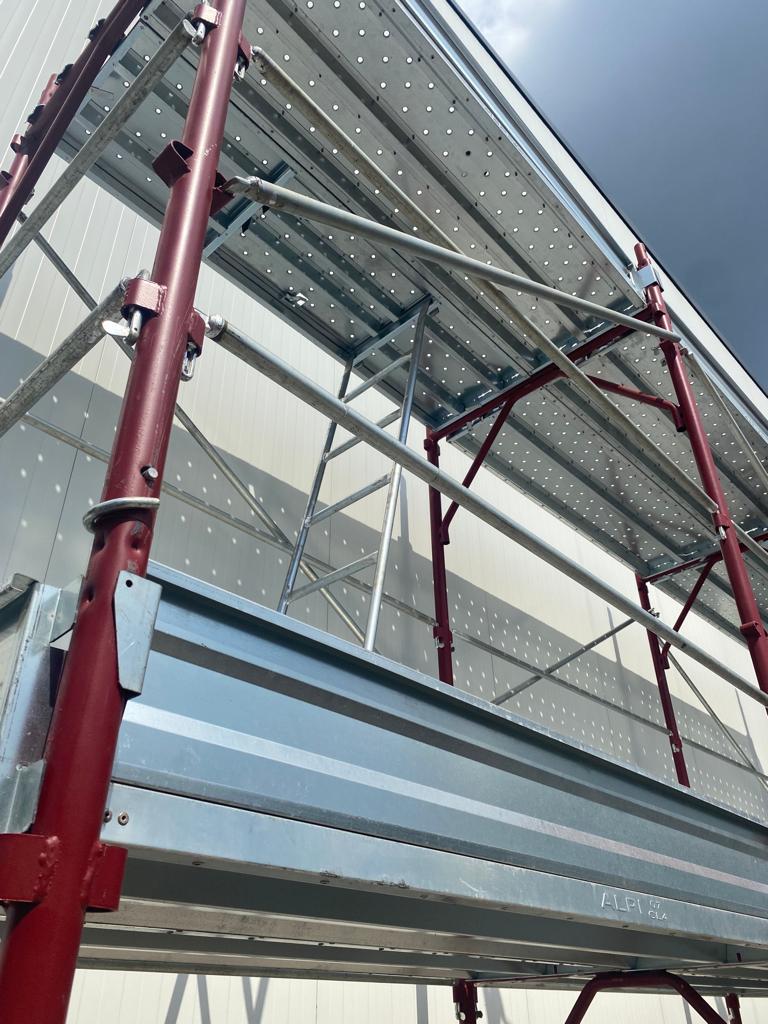

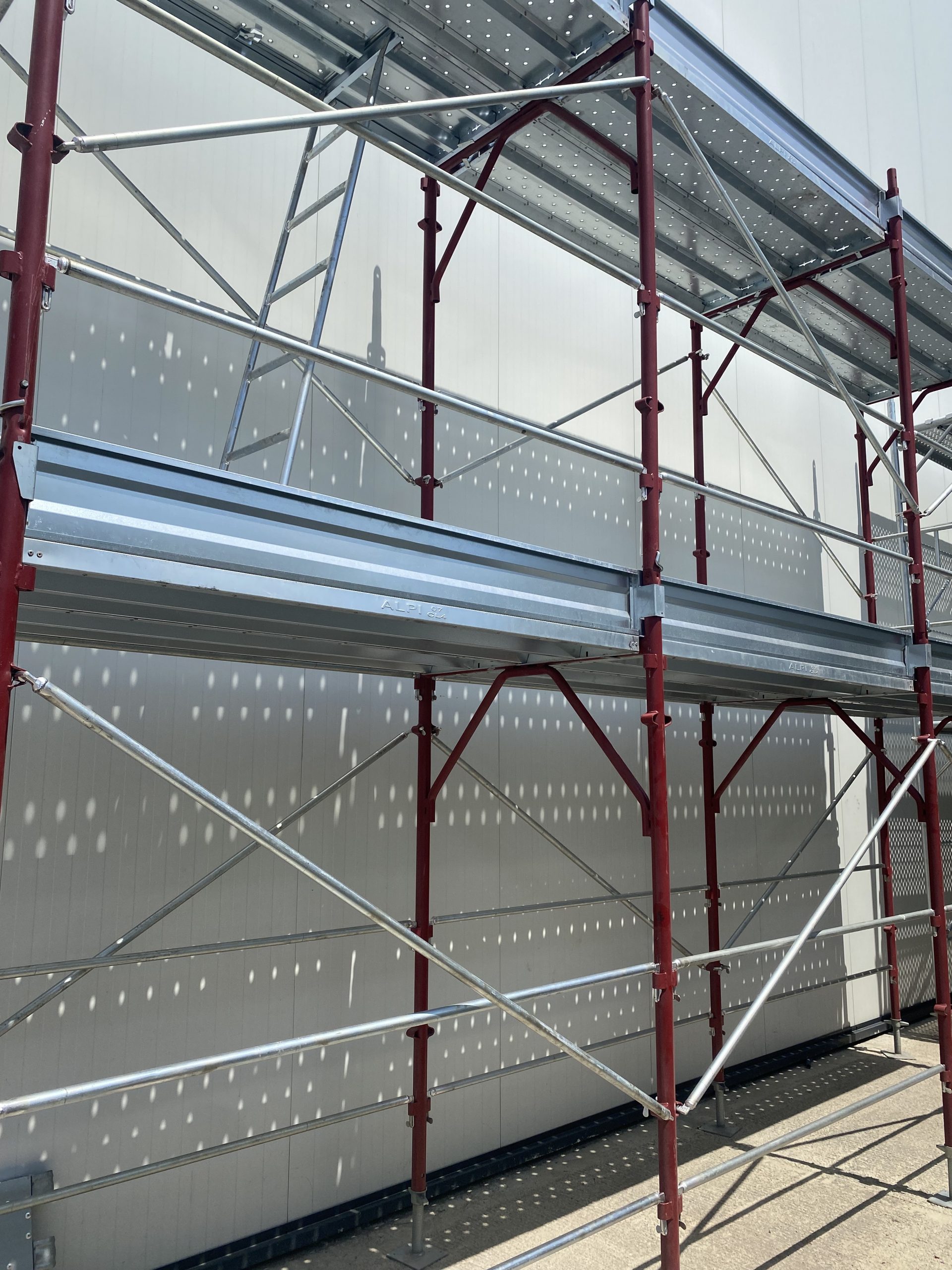

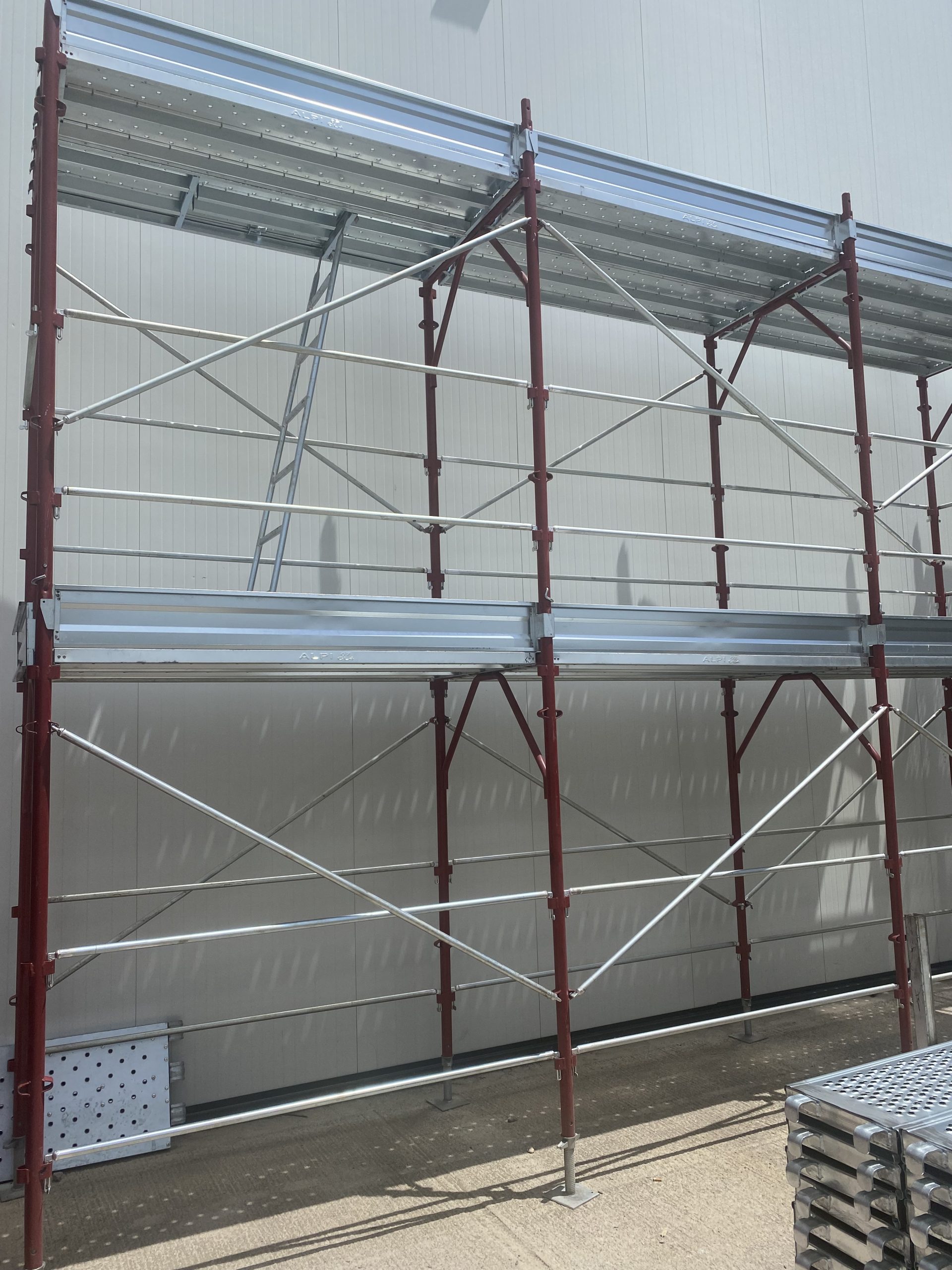

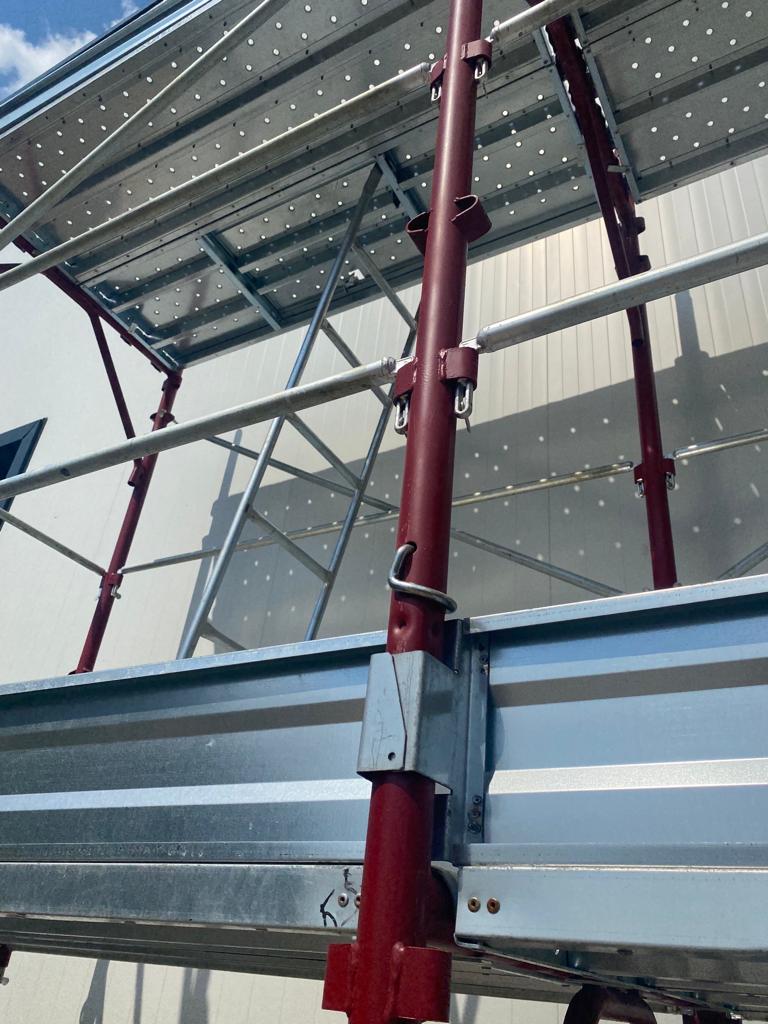

ITALIAN TYPE SCAFFOLDING
Below are the features of GBM bushing-type scaffolding:
1) Pitch: 1800 mm
2) Frame height: 2000 mm
3) Frame depth: 1050 mm
4) Half frame height: 1240 mm
5) Lenght of horizontal ledgers centre distance: 1725 mm

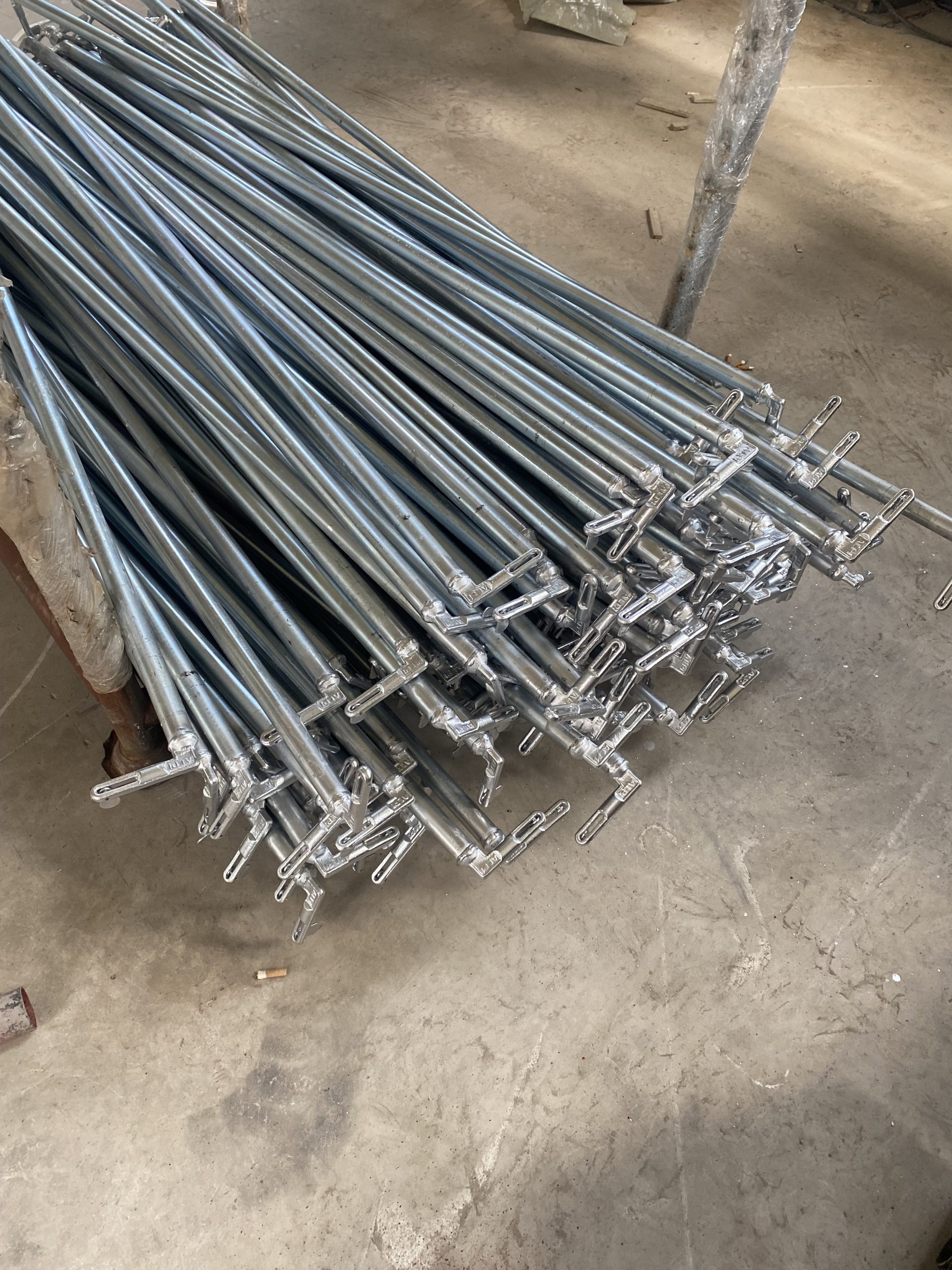

6) Length of diagonal braces centre distance: 2100 mm

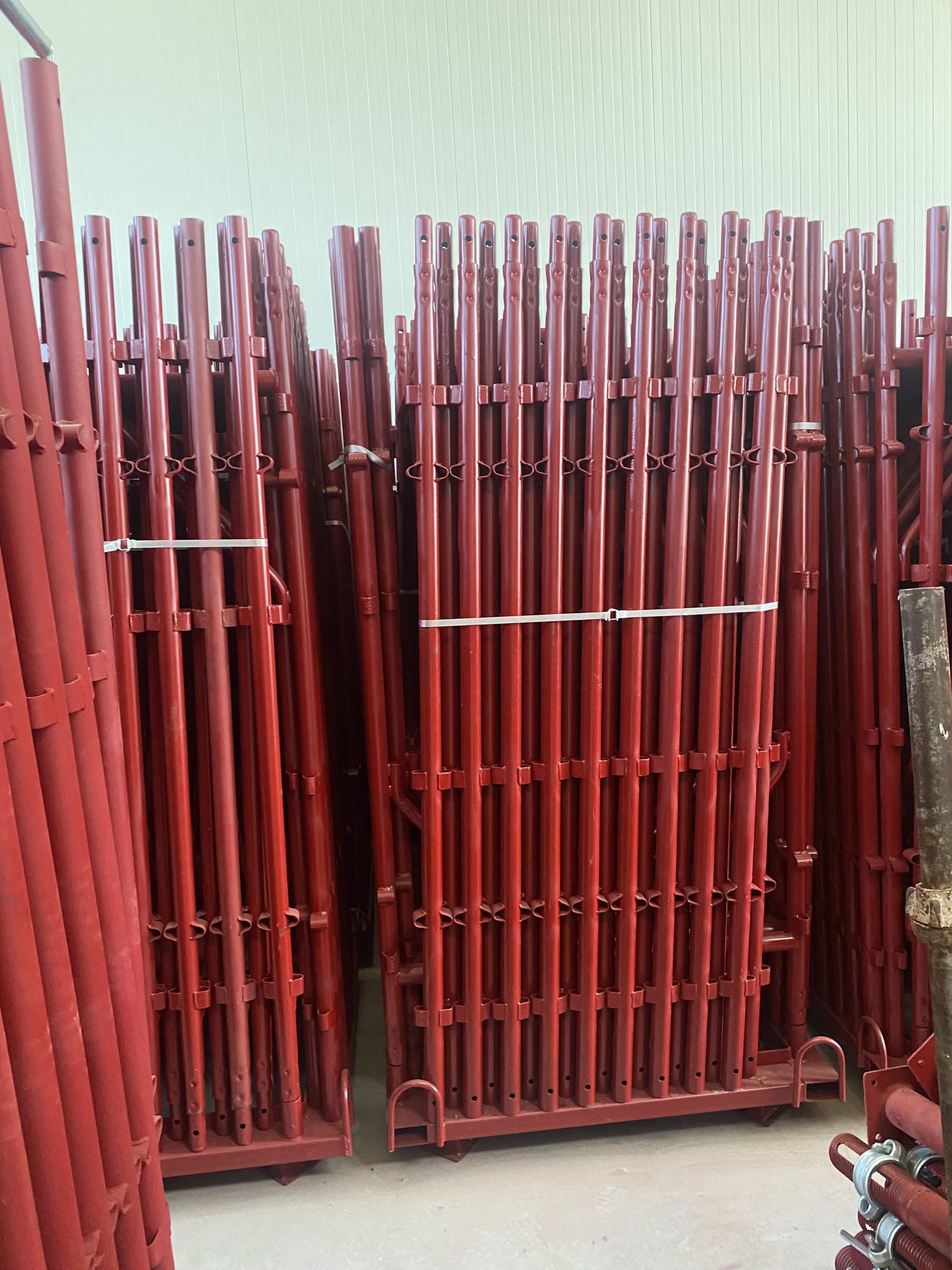

7) Frame weight: 18.50 kg , Half frame weight: 14.00 kg
8) Horizontal ledgers weight: 2.60 kg , Diagonal braces weight: 3.10 kg
9) Maximum load: 30kN/m2
10) S235JR steel pipes
11) Red RAL 3009 dip coating or hot-dip galvanization according to the UNI EN ISO 1461 standard

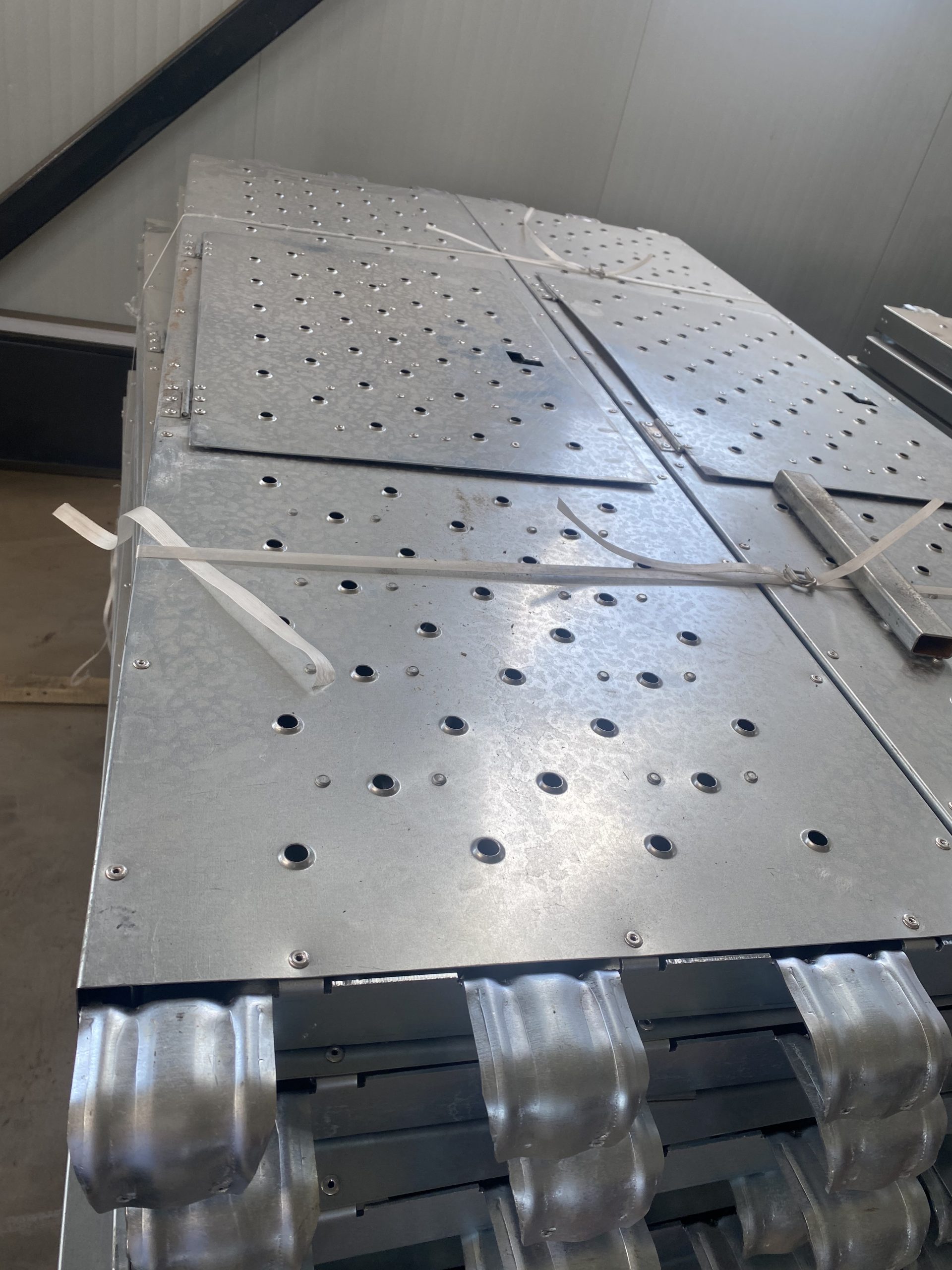

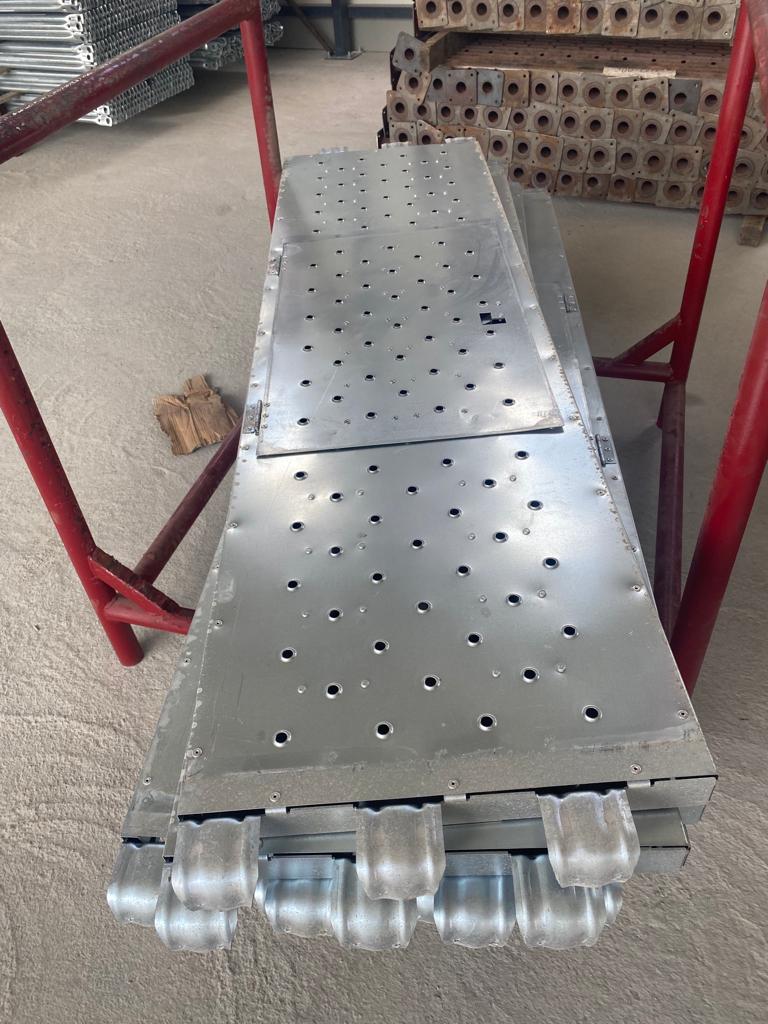

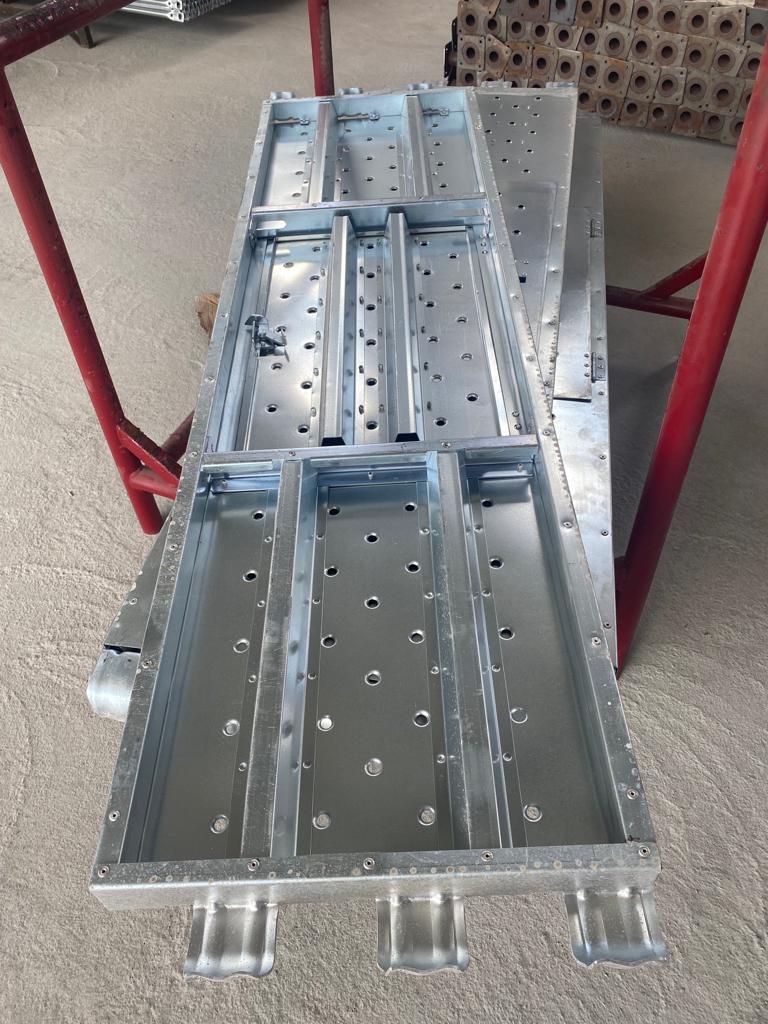

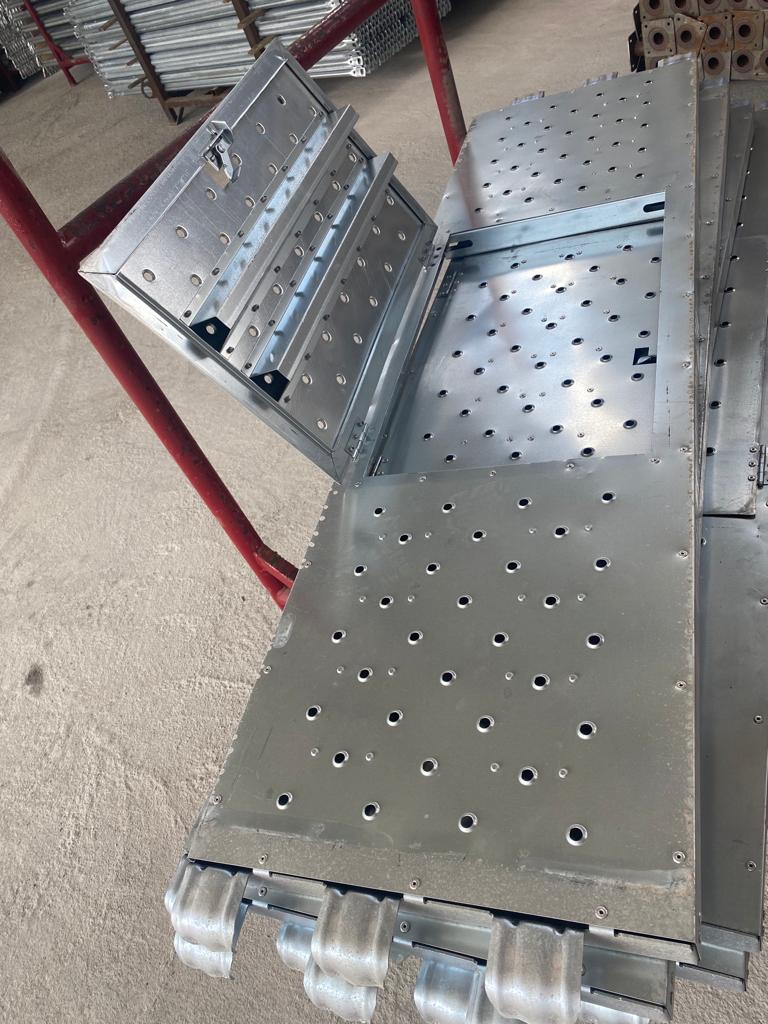

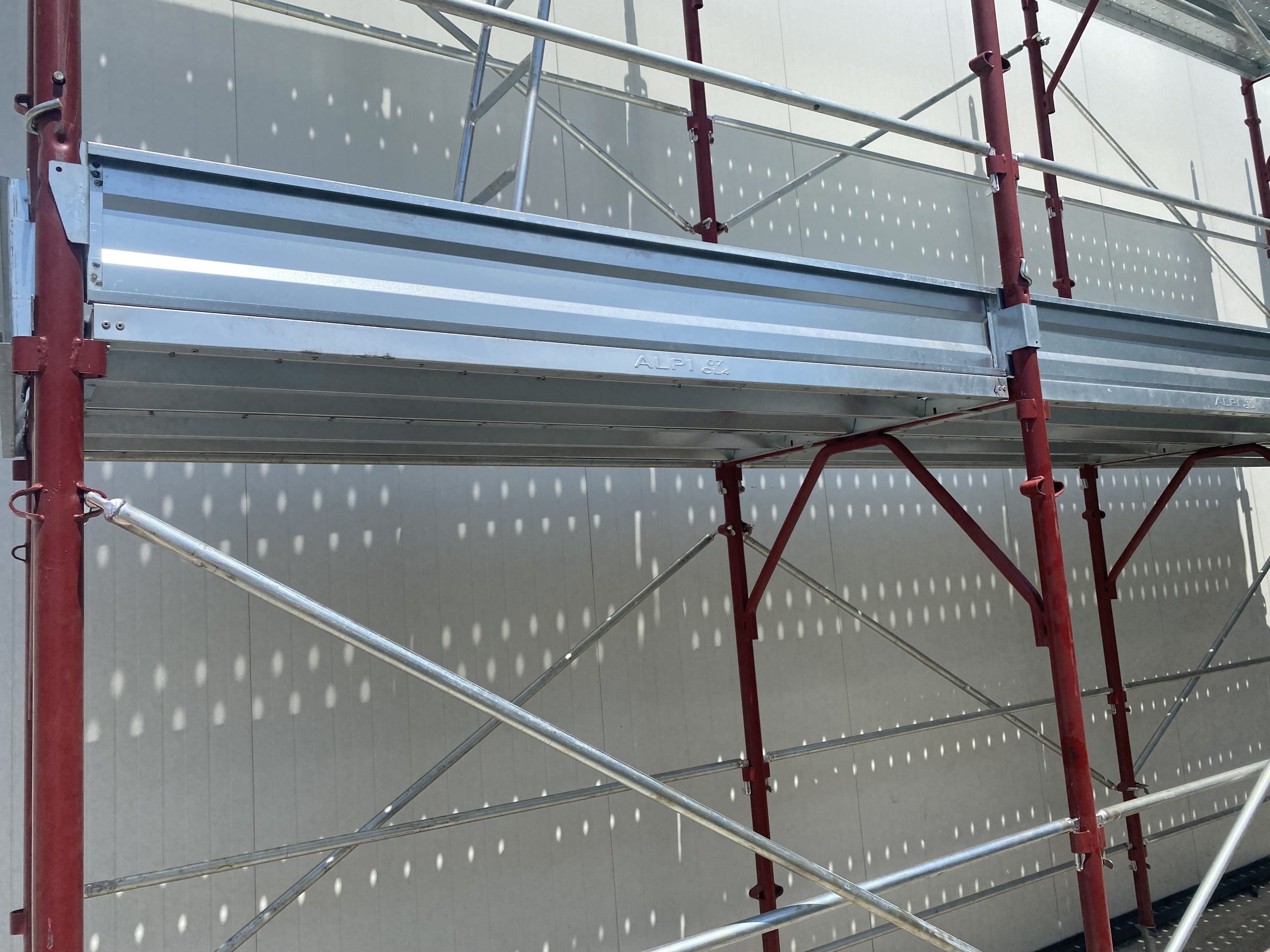

12) Platforms with trapdoors and ladder
13) Safety parapets for the ends, stone guards, rods, top parapets, adjustable base plates, toeboards.
